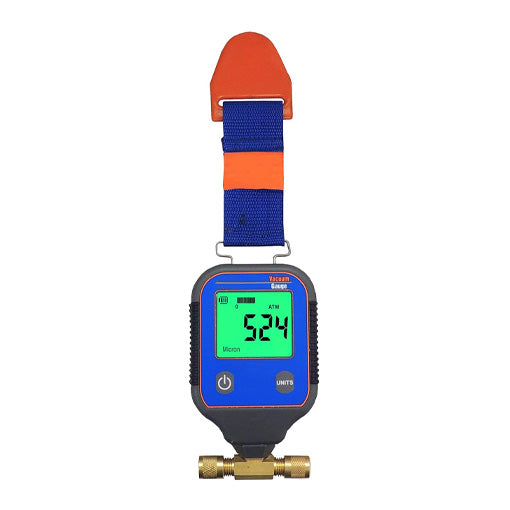

Digital Vacuum Gauge




  • Sale
  • $274.99
  • Regular price $324.99


Precision You Can Hear, See, and Trust!

“ Works like a charm. Easy to use. Requires 3 AA batteries but that is minor, and did everything I wished for when it came to putting a system into a vacuum.” - Maureen K.

Why Get Our Digital Vacuum Gauge?

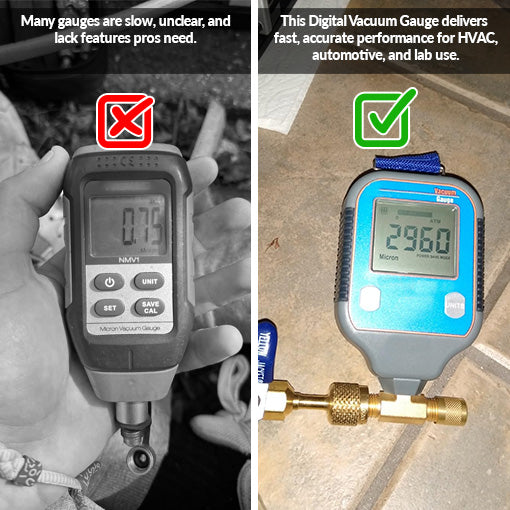

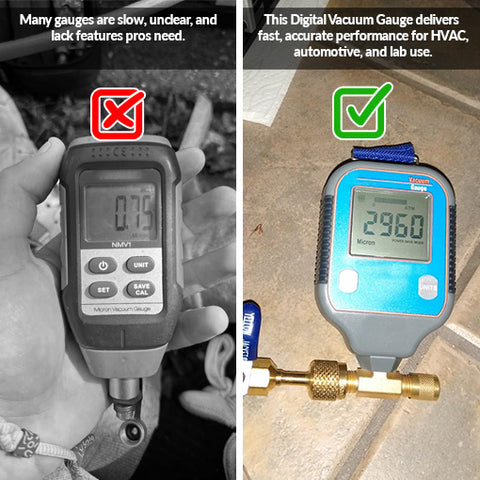

✅Fast, Fine-Tuned Measurement: Under-evacuation in an HVAC system can leave behind moisture and air, which leads to acid formation and compressor failure over time. On the other hand, over-evacuation wastes time, wears out vacuum pumps faster, and offers no added benefit once deep vacuum levels are already achieved.This gauge starts with 0.5 micron resolution at 0–200 microns, giving pros the data they need to prevent under- or over-evacuation. It also updates every 0.5 seconds to keep results live and reliable. It can measure from 0 to 12,000 microns.

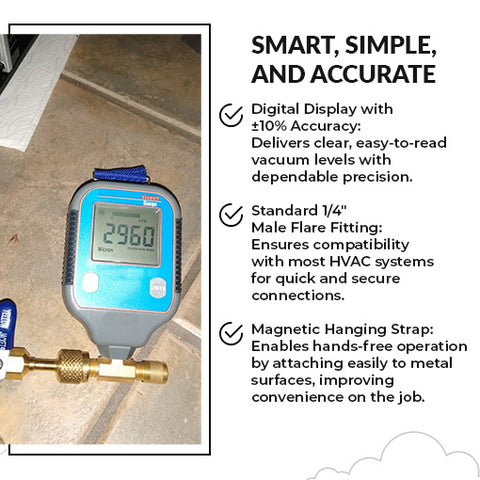

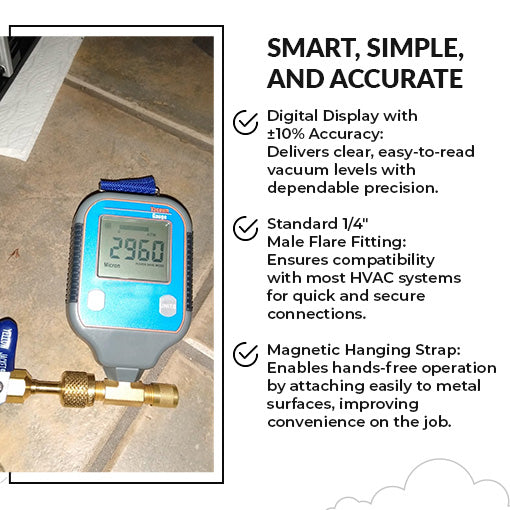

✅Clear Readings in Any Light: It uses a bright, backlit LCD that’s easy to read in garages, mechanical rooms, or outdoor service sites. It also displays seven unit types, perfect for global teams or specialized applications.

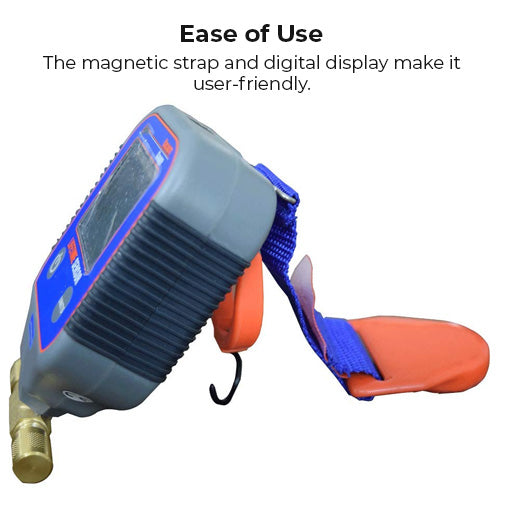

✅Hands-Free Setup and Alerts: No need to babysit the gauge. Use the built-in hook to hang it, then rely on the 87 dB alarm to notify you when your desired vacuum level is reached. Visual alerts help even in noisy environments. With up to 600 hours of battery life and a serviceable cleaning port, it is also built for long-term field use.

📓FREQUENTLY ASKED QUESTIONS

Q: What is the lowest vacuum pressure it can measure?

A: The Digital Vacuum Gauge can measure vacuum pressure as low as 0 to 12,000 microns.

Q: Is it easy to read in low light conditions?

A: Yes, the Digital Vacuum Gauge has a backlit, LCD digital display, which should make it easy to read in low light conditions.

⚙️ Specifications:

  • Color: Blue

  • Item Weight: 0.25 lbs.

  • Material: Plastic

  • Screen Size: 3 inches

  • Vacuum Range: 0 to 12,000 microns (0 to 1,600 Pascals)

  • Resolution:

            0–200 microns: 1 micron

            201–500 microns: 5 microns

            501–1,000 microns: 10 microns

            1,001–2,000 microns: 50 microns

            2,001–5,000 microns: 250 microns

            5,001–8,000 microns: 500 microns

            8,001–12,000 microns: 1,000 microns

  • Accuracy: ±10%, or ±10 microns (whichever is larger, from 50–2,000 microns at 75°F)

  • Units Displayed: Microns, Pascal, milliBar, Torr, PSI, InHg, milliTorr

  • Update Rate: Every 0.5 seconds

  • Alarm Volume: 87 dB

  • Battery Type: 9V (not included)

  • Battery Life: Up to 600 hours

  • Auto Shut-Off: After 8 hours of alarm activation or when alarm is disabled

  • Operating Temperature: 35°F to 125°F (2°C to 52°C)

  • Overpressure Limit: 500 PSI (20 Bar)

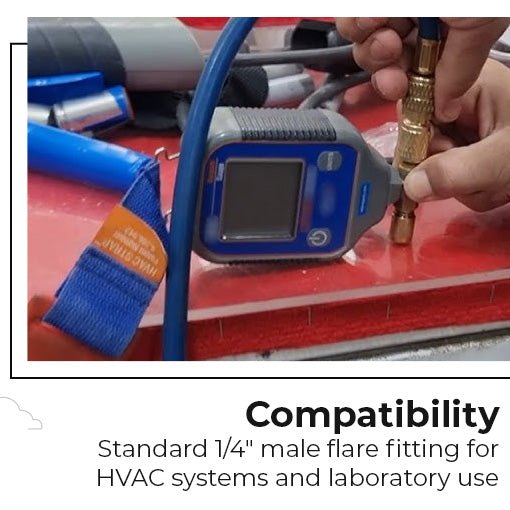

  • Compatibility: Standard 1/4" male flare fitting for HVAC systems and laboratory use

  • Product dimensions:  9 x 2 x 5 inches

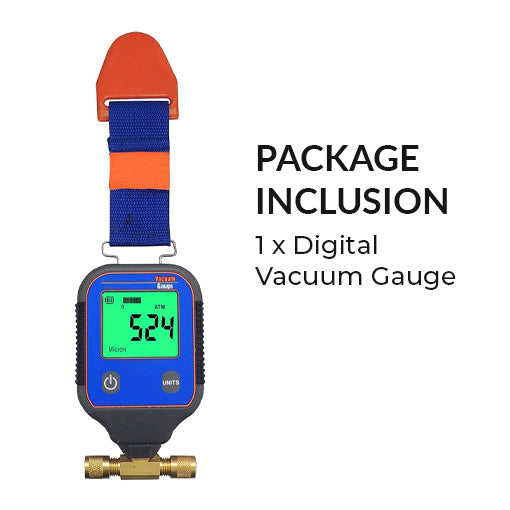

  • Package inclusion: 1 x Digital Vacuum Gauge



Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Sophia Martinez
Beware of updated model

Very durable. Been out in drenching rain. Below freezing temperatures. Still works. Only downside is double male hose connections.

M
Maria Lopez
Durable under harsh weather

Seen this meter a few times. Seems like it is a decent gauge for the price.

A
Amanda Clarke
Magnetic strap upgrade

Finally had a chance to use it and it reads vacuum pretty good below 500 microns but it does not hold the vacuum. It started going up as soon as I closed the valve. Tried my friend's vacuum gauge with the same hoses and pump arrangement and it held vacuum. Tried it again with my Supco gauge and it did not hold vacuum. First time to use it and it is NO good.

E
Emily Chen
Simple and effective

Rain ruined it on me, but outside of that it’s an amazing vacuum gauge worth the money.

J
John Peters
Trusted gauge performance

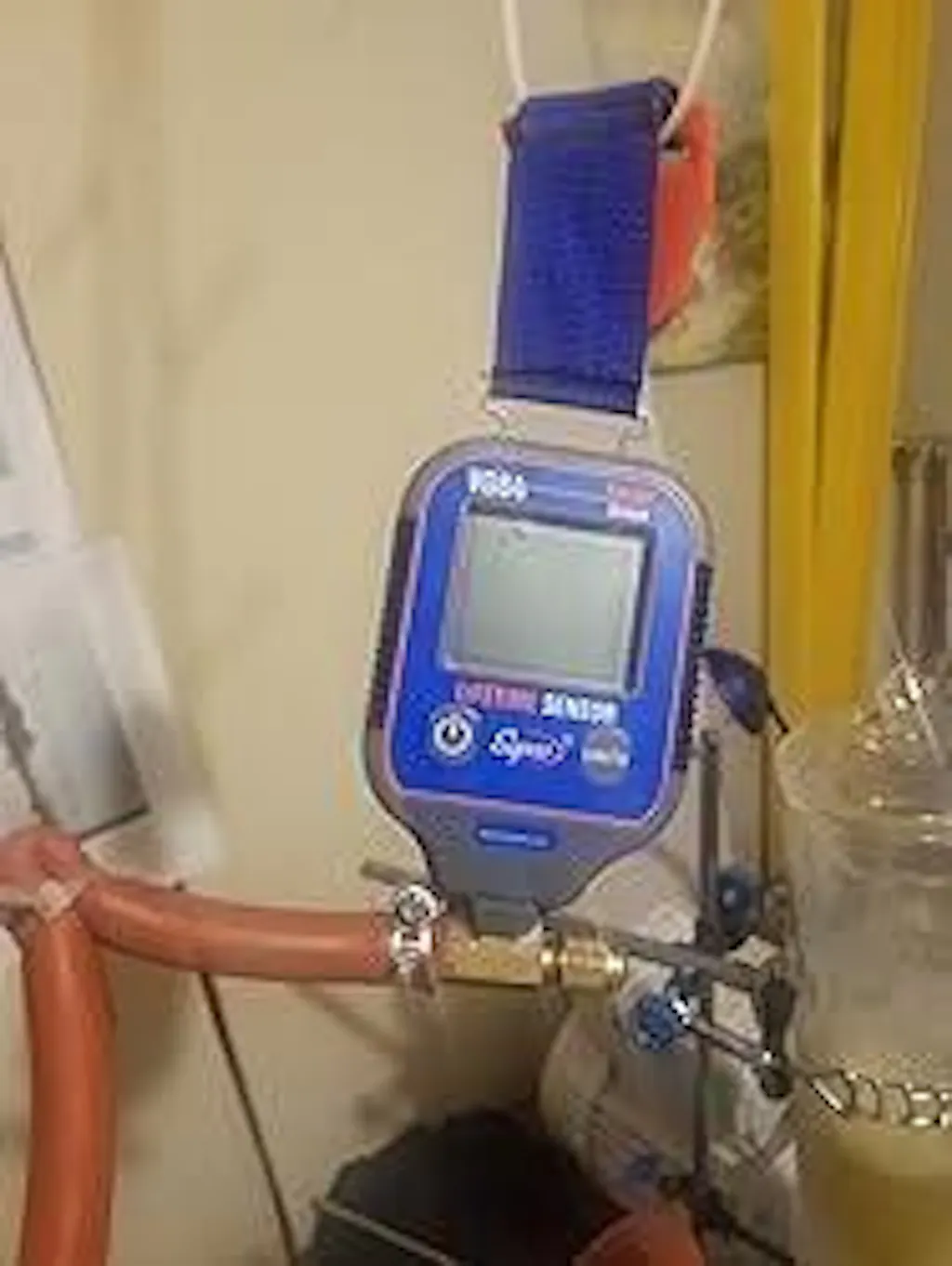

Not much else to say other than it worked just like expected. I especially liked the magnetic strap. Old version didn’t have that. Made hanging it much easier.
