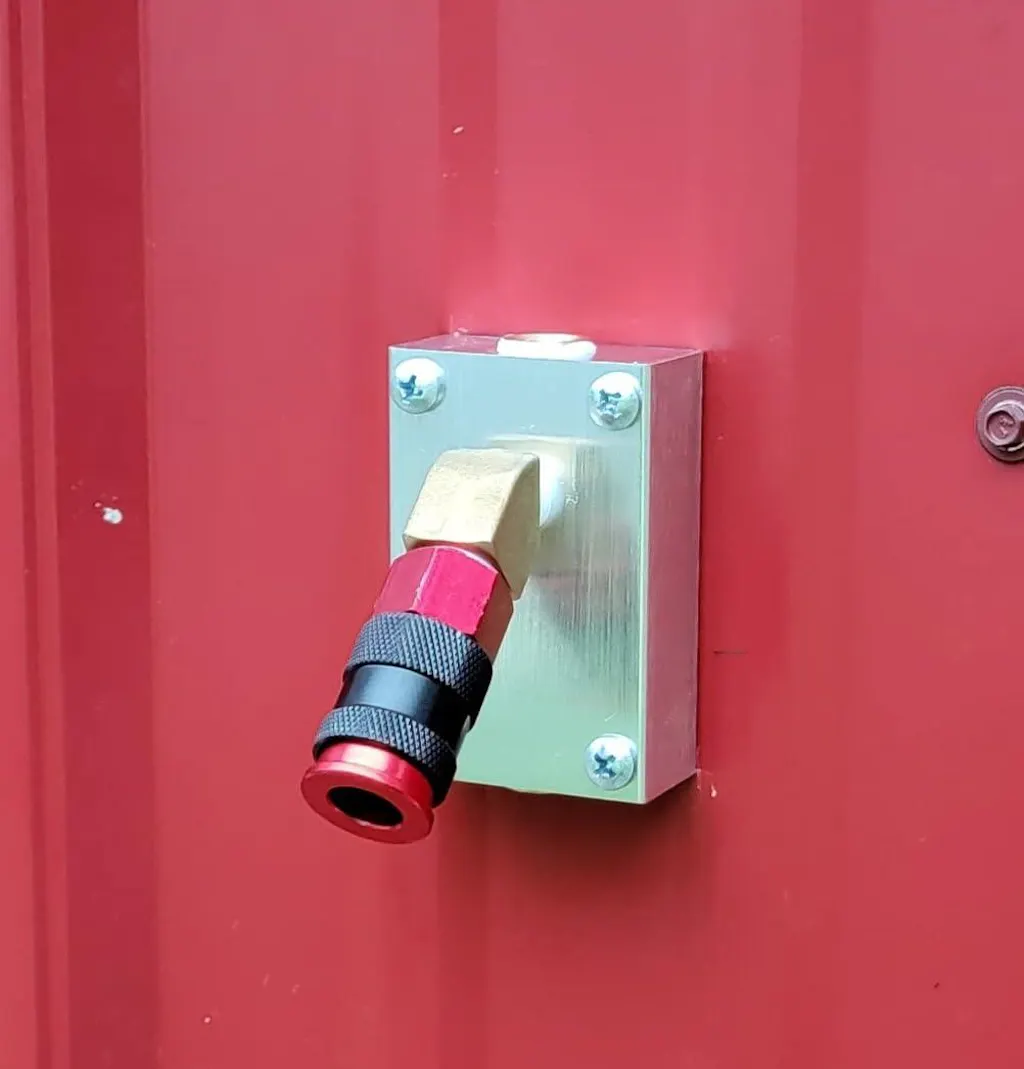

“ Great product for air compressor jobs. I installed mine outside. Seems to be doing good. No leaks or cracks.” - Fred N.

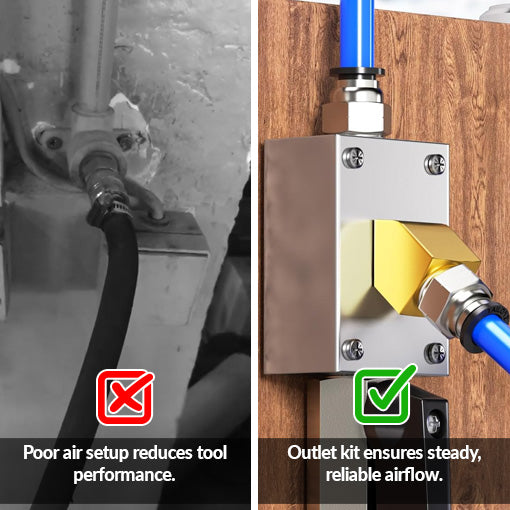

✅Distributes Air Where You Need It: Constantly moving your compressor or reconnecting hoses not only wastes time but also creates a messy and inefficient workspace. This system solves the problem of limited access by allowing you to install air outlets throughout your workspace. Instead of dragging one hose from a fixed compressor, you get reliable air distribution to multiple zones—maintaining consistent pressure and improving tool response wherever you're working.

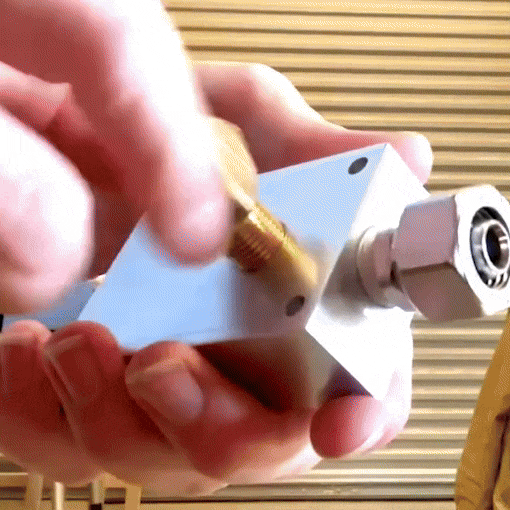

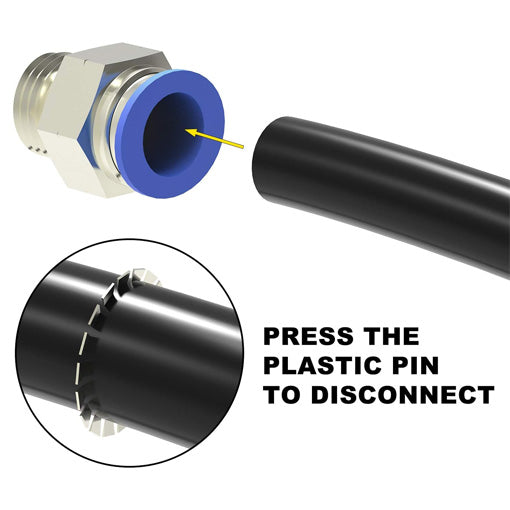

✅Quick Connections, Zero Guesswork: With push-to-connect fittings, building or expanding your system is straightforward. Just press the tubing into place. To disconnect, press the release collar and pull. No clamps, threading, or extra tools required.

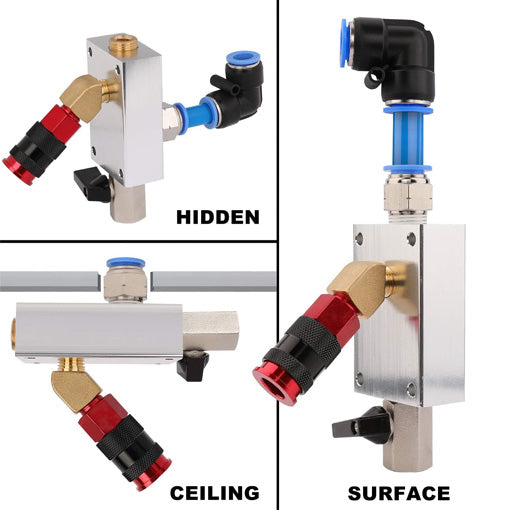

✅Mount Anywhere. Use Everywhere: The outlet block is ported on three sides for flexible routing. Whether you’re mounting to a wall, ceiling, or hiding it behind a bench, the layout adapts to your space and keeps your lines efficient. Simply push the tubing into the fitting until seated and if removal is desired, push in evenly on the release button and pull tubing out of the fitting.
Q: What is the maximum pressure this kit can handle?
A: The Compressed Air Outlet Kit can regulate air pressure to a maximum of 150 PSI.
Q: Does it include tubing or piping?
A: No, this kit does not include tubing. It provides the outlet block and essential fittings needed to connect to your existing 1/2-inch tubing system.
Color: Silver, Blue, Red, Gold
Material: Aluminum

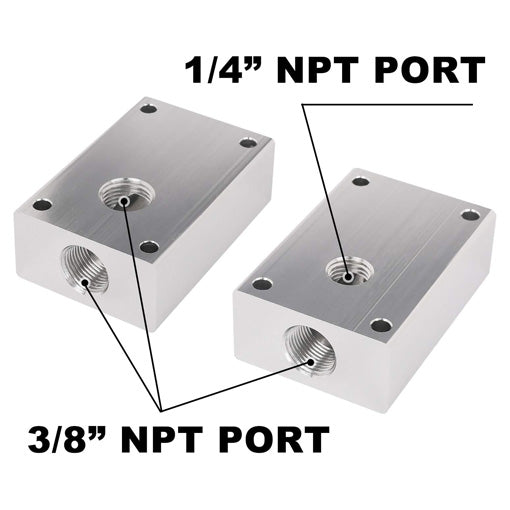

Thread Size: 3 × 1/4” NPT
Other 3 Ports: 1 × 3/8” NPT
Air Inlet Size: 1/2” NPT
Air Outlet Size: 1/4” NPT
Coupler Size: 1/4” MNPT
NPT Straight: 1/2” OD × 3/8” ID
Union Elbow: 1/2” OD × 3/8” ID
Compatibility: Ported on top and back to allow wall, ceiling, or hidden mount.
Product Dimensions: 4.4 x 1 x 8.7 inches

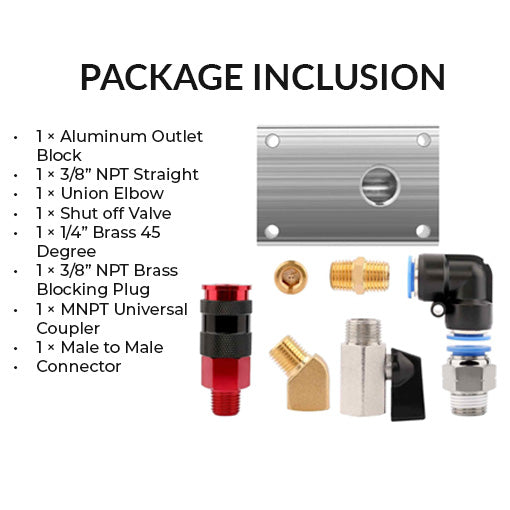

1 × Aluminum Outlet Block
1 × 3/8” NPT Straight
1 × Union Elbow
1 × Shut off Valve
1 × 1/4” Brass 45 Degree
1 × 3/8” NPT Brass Blocking Plug

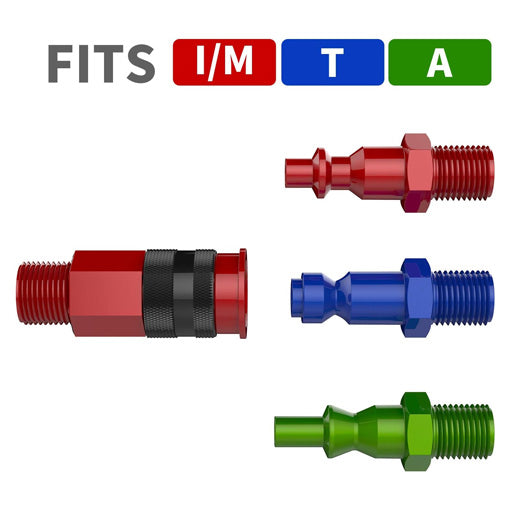

1 × MNPT Universal Coupler
1 × Male to Male Connector
Finally organized my air lines the way I wanted. Mounted it behind my workbench. Clean look and good performance.
The push-to-connect fittings really made this install easy. Tight seal, no leaks. Would buy again.
This solved my problem with dragging hoses across the shop. I set up outlets on both ends of the workspace.
Very sturdy outlet block. Everything fit snug. I like that the shut-off valve lets me control airflow in sections.
I added two of these in my garage. Huge time-saver for quick tool changes and hose switching.
