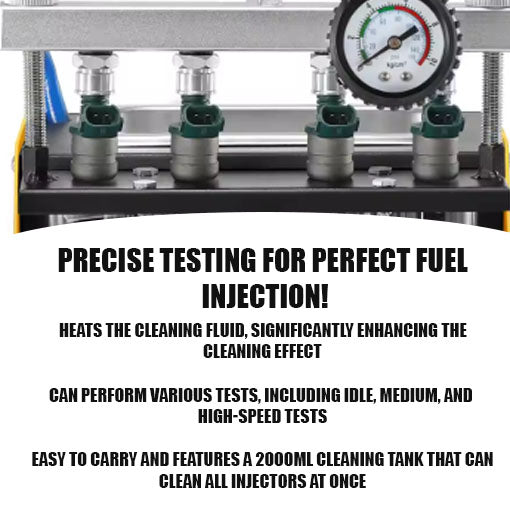

Precise Testing for Perfect Fuel Injection!

“Very happy with this unit. I am a DIY mechanic, so I don't expect this to see a TON of use, but it takes the guesswork out of the 'mystery' of fuel injectors. This comes as a 4-injector system. This made the most sense to me over larger units” - Glenn Waterworth

Why Get Our Fuel Injector Cleaner Tester?

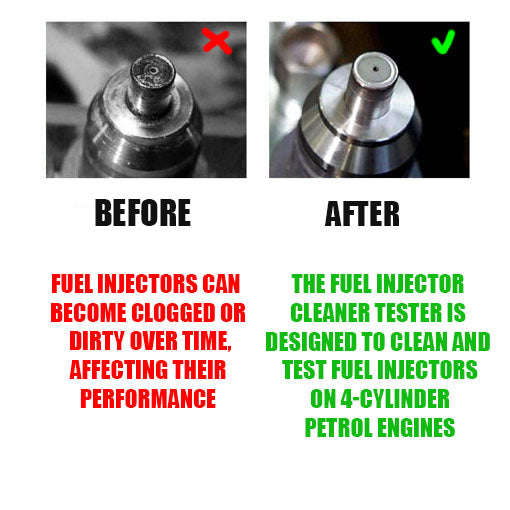

✅Efficient Cleaning: Fuel injectors can get clogged or dirty over time, impacting performance. The Fuel Injector Cleaner Tester is designed to clean and test injectors on 4-cylinder petrol (gasoline) engines, specifically for heated injection systems commonly used in modern vehicles. Unlike other cleaners, this device heats the cleaning fluid, significantly enhancing the cleaning effect. This feature allows ultrasonic cleaning to be more effective, helping to remove attachments and internal blockages from the injectors.

✅Various Fuel Injector Tests and Digital Display: The Fuel Injector Cleaner can perform various tests, including idle, medium, and high-speed tests, as well as acceleration, variable speed, leakage, and spray volume tests. With microcomputer control and a digital display, it allows for automatic cleaning, injector testing, and real-time monitoring of dynamic values.

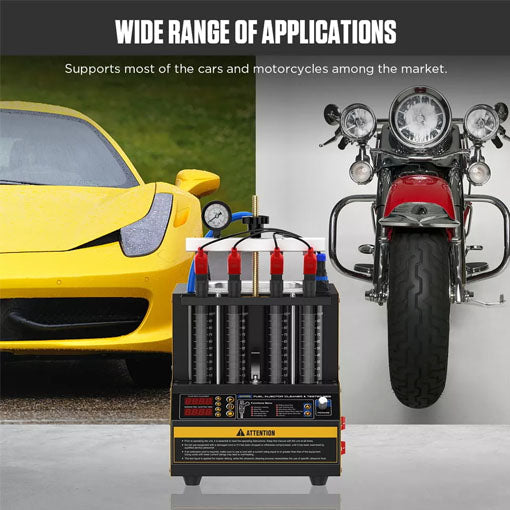

✅Compact and Widely Used: Weighing just 17.6 lbs, the Fuel Injector Cleaner is easy to carry and features a 2000ml cleaning tank that can clean all injectors at once, saving time and boosting efficiency. Environmentally friendly, it allows for easy recovery of used fluids and works with most cars and motorcycles. It supports both 110V and 220V power.

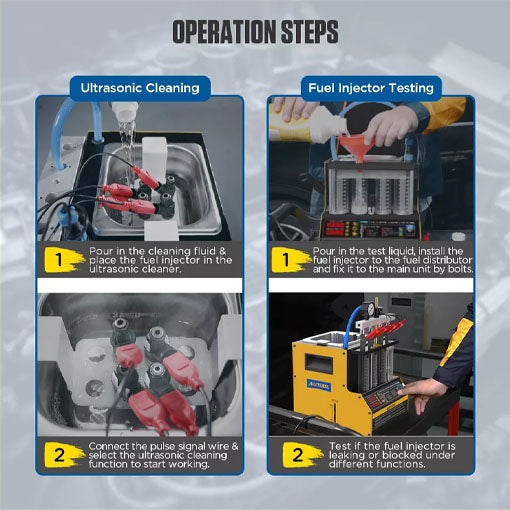

🌟HOW IT WORKS

• Ultrasonic Cleaning

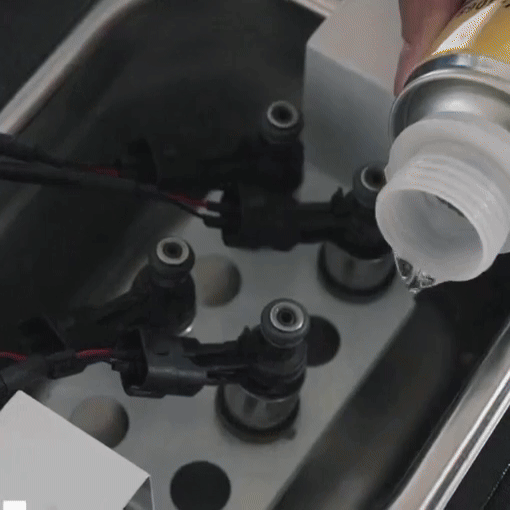

1. Pour in the injector detergent and place the injectors in the ultrasonic cleaner tank.

2. Connect the pulse signal wire and select the ultrasonic cleaning function to start working.

• Fuel Injector Testing

1. Pour in the test liquid, install the fuel injector to the fuel distributor, and fix it to the main unit by bolts.

2. Test if the injector is leaking or blocked under different functions.

🌟KIND NOTICE:

• How to choose cleaning fluid?

• Cleaning fluid is used to clean deposits (such as carbon deposits) on fuel injectors, and it is usually highly corrosive and flammable.

• To achieve the best test effect, it is recommended to use professional injector ultrasonic cleaning fluid. If it is not available locally, it's recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the cleaning fluid, but note that the effect may not be good enough.

🌟FUEL INJECTOR TEST

01. Ultrasonic cleaning: injector cleaner sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration to completely remove the carbon and impurities inside the injectors.

02. Idle speed test (0- 20ms): Simulate the engine's idling speed and test the state of the fuel injector.

03. Medium speed test (0-7.5ms): Simulate the engine running at medium speed and test the state of the fuel injector.

04. High-speed test (0- 4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.

05. Acceleration test: Simulate the acceleration state of the car and test the performance of the fuel injector.

06. Shift speed test: Simulate the shifting state of the car and test the working performance of the fuel injector.

07. Leakage test: Test the sealing condition of the fuel injector.

08. Idle dpeed sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.

09. Medium speed sprayability test: Simulate the engine medium-speed state and test the spraying performance of the fuel injector.

10. High-speed sprayability test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.

11. Main unit information: used to store the product number and date of manufacture of the product.

⚙️ Specifications:

• Color: Black, yellow

• Item Weight: ‎16.76 pounds

• Tank capacity: 2000 ml

• Range of rotation: 0-7500r/min

• PWM pulse width: 0～20.0ms

• Step 0.1ms Time: 0～20min

• Cleaning frequency: 40 kHz

• Cylinder volume: 180 ml

• Injection times: 0~9900 times, step 100ms

• System pressure: 0～0.6Mpa

• Ultrasonic cleaning power: 70W

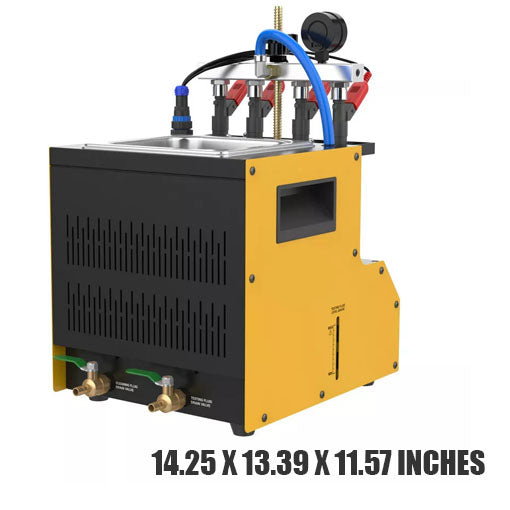

• Package dimensions: ‎14.25 x 13.39 x 11.57 inches

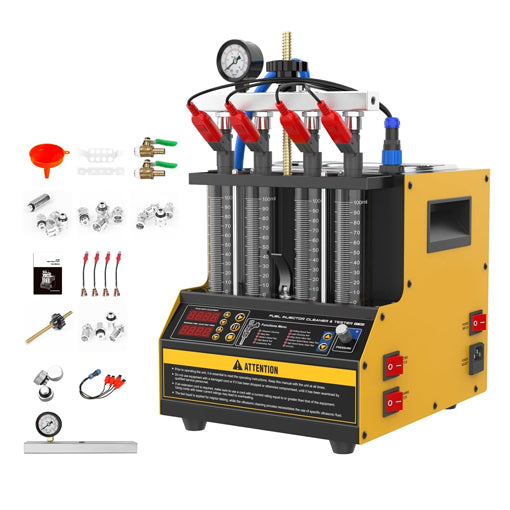

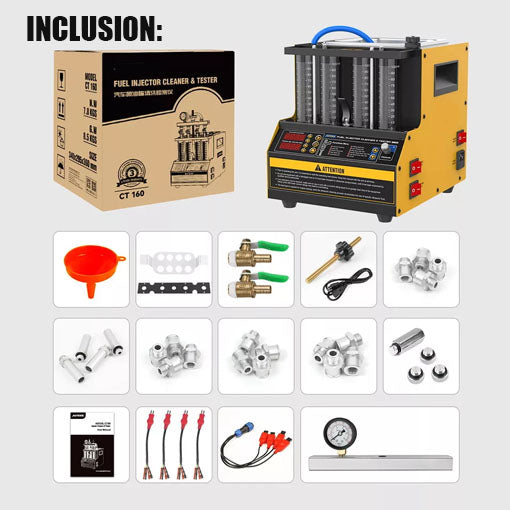

📦Package Inclusion:

• 1 x Fuel Injector Cleaner Tester Main Unit;

• 1 x Funnel(for adding test fluid);

• 1 x Ultrasonic Cleaning Bracket(for placing the injectors during cleaning);

• 1 x Micro gaskets(for auxiliary installation of special fuel injectors)

• 2 x Drain Valve(To drain the cleaning fluid and test fluid);

• 1 x Locking rods(For fixing the oil separator)

• 1 x Locking Nut(For fixing the oil separator);

• 1 x Extended plug (used to block the holes on the oil separator)

• 4 x Top inlet connectors 9.8mm/11mm/10.6mm/10.5mm/13.5mm (for connecting the top of the injector and the oil separator hole)

• 3 x Plugs for oil separator(used to block the holes on the oil separator)

• 1 x Drive signal line (used to transmit pulse signal, connect to the injector signal input pin)

• 4 x Adapter cables(For transferring the pulse signal line connector, instead of connecting the injector signal input pin)

• 1 x Oil Separator(Distribution device for outputting pressurized test fluid to the injectors);

• 1 x Power Cable(for connecting power supply);

• 1 x Sealing gasket kit (for the sealing of fuel injector and oil separator junction)

• 1 x User Manual(Instructions)
