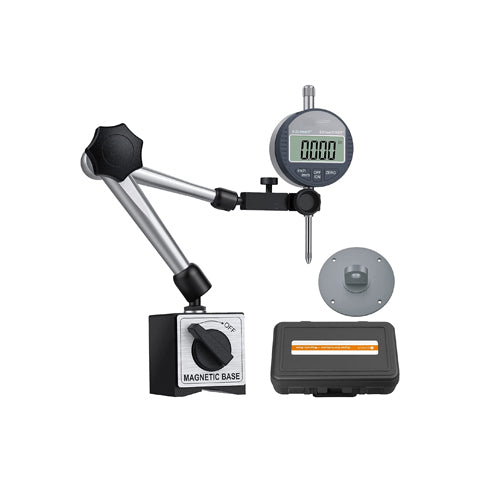

Digital Dial Indicator Set




  • Sale
  • $99.99
  • Regular price $119.99


Universal Conversion Measuring Tool

โ€œI've found it to be highly accurate, especially given the tolerance required for woodworking. The base magnet is extremely powerful on cast iron tops and is heavy enough to be stable on wood or other non-magnetic surfaces. Excellent value for money.โ€ - Charlie L.


Why Buy Our Digital Dial Indicator Set?

โœ…DIGITAL MEASUREMENT: It has a measuring range of 0-1" (0-25.4mm) with a high resolution of up to 0.0005". (0.01mm). The unit may be switched between mm and inch and has a zero setting.


โœ…ADJUSTABLE: It has a magnetic base and dimensions of 2 Arms (Lower Arm 4.5"; Upper Arm 4"; Total Height of 14.1"). Its clamping hole diameter is 5/16 inches (8mm). The direction and position of the rotating joint may be adjusted arbitrarily, making it flexible, strong, and stable.


โœ…CONVENIENT: It has two solid magnet surfaces with an on/off switch. It has a maximum tensile strength of 176lbs/80kg to assure stability. Compatible with 3D Printer, Lathe, Woodworking, Workshop, CNC Machine, Table Saw, etc.


๐Ÿ“ŒNote:

  • If it's 76lbs/80kg tensile force it requires a metal working surface/surface with a thickness of 30mm above.


๐Ÿ“Frequently Asked Questions:

Q: What is the main purpose of this tool?
A: This is used in a machine to align a workpiece. In the case of EDM, for example, grinding machines, lathe machines, and milling machines. The tools are also used to check the spindle runout in a machine tool. Dial Indicators can be used to align workpieces in the spin fixture.

Q: Does it come with a case?
A: Yes it comes with a case.

Specifications:

  • Item Weight: 4.41 lbs
  • Package Dimensions โ€: โ€Ž12.52 x 7.76 x 3.5 inches

Digital Dial Indicator๏ผš

  • Large LCD Display with 3 Digits
  • Measuring Range from 0 ~ 25.4 mm (0 ~ 1 inch)
  • High Resolution up to 0.01 mm (0.0005")
  • Switchable between mm and inch
  • Zero Setting
  • Response Time: โ‰ค 0.5 m/s
  • Operating Temperature: 0 ~ 40 โ„ƒ (32 ~ 104 โ„‰)
  • Storage Temperature: -20 ~ 70 โ„ƒ (-4 ~ 158 โ„‰)
  • Relative Humidity: โ‰ค 80% R.H
  • Material:Aluminum Alloy
  • Power: 1 x 1.5 V LR44 Button Cell Battery (Included)
  • Item Size: approx. 122 (L) x 55 (W) x 26 (D) mm (4.80 x 2.17 x 1.02 inch)
  • Item Weight: approx. 129 g (4.55 oz) (battery included)

Magnetic Base๏ผš

  • Weight๏ผš1201.7g
  • Rally: 176 lbs (80 kg)
  • Length: About 35 cm/14 inch
  • Material: Steel
  • Arm Adjustment๏ผš3 joints adjustable
  • Arm Dimension: Lower arm 4.5 inches, Upper arm 4 inch
  • Clamping diameter: 5/16 inch ( 8mm)
  • Base Stand Arms:
    • lower arm 4.5"; upper arm 4"; total height 14.1 inches
  • Clamping diameter 5/16 inch ( 8mm).

Product Inclusions:

  • 1x Digital Dial Indicator
  • 1x Magnetic Base
  • 1x Rear Cover
  • 1x 1.5V Battery
  • 1x Case
  • 1x Manualย
