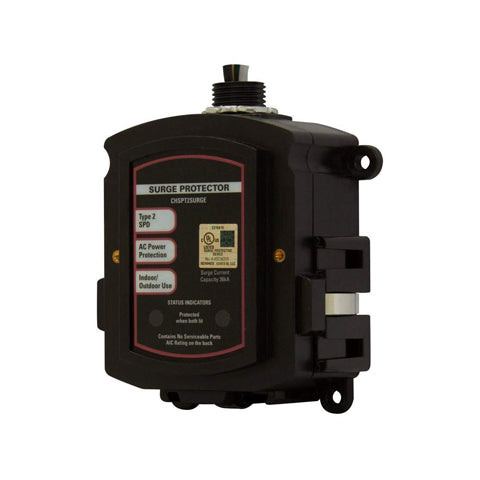

Home Surge Protector




  • Sale
  • $117.99
  • Regular price $137.99


๏ปฟ

The Ultimate Home Protection!

"Super simple to install in your breaker box. It's a great protection to have in your home since you never know when a surge will hit. It's best to be prepared." -Morris T.


Why Buy Our Home Surge Protector?

โœ…EASY INSTALLATION: Has a quick connect design to easily mount cable protection modules. With an AC power connection that can universally connect to any manufacturerโ€™s load center (breaker box).


โœ…SAFE: Designed to protect your electronics and appliances from electrical disturbances. It should be connected on the load side of the load center main service disconnect through a dedicated circuit breaker.


โ—๏ธRemindersโ—๏ธ

  • This is a Type 2 Surge Protector.

๐Ÿ“‹Frequently Asked Questions:


Q: What is the AWG wire thickness of the 4 wires that connect this to the panel breaker?

A: The wires on the unit are 14AWG.


Q: If I install this in a sub-panel, will it protect the main panel as well as the sub-panel?

A: Since the sub-panel is after the main it will not protect upstream. It is recommended to install the surge protector in the main panel.


Specifications:

  • Product Dimensions: โ€Ž 7.5 x 5.2 x 2.9 inches
  • Product Weight: 13.12 Ounces
  • Voltage: 240 Volts
  • Number of Ports: 4
  • Frequency Rating: 60 Hz
  • Interrupt Rating: 200 kAIC
  • Operating Temperature: -40 to 50 ยฐC
  • Operating Voltage: 150V L-N, 300V L-L
  • Phase: Single-phase
  • Protection: 700V L-N, 1200V L-L, 900V N-G, 700V L-G
  • Surge Current: 36 kA

Inclusions:

  • 1x Home Surge Protector
