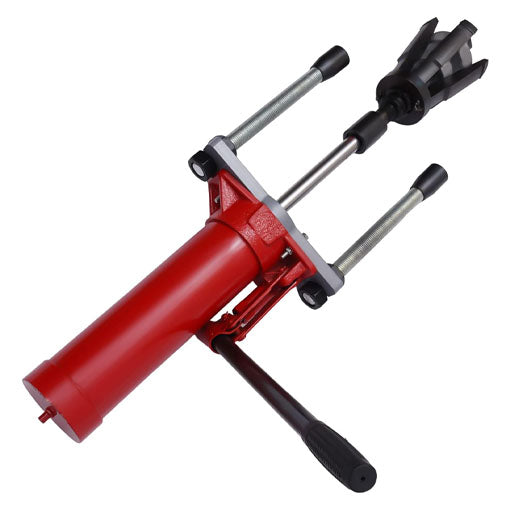

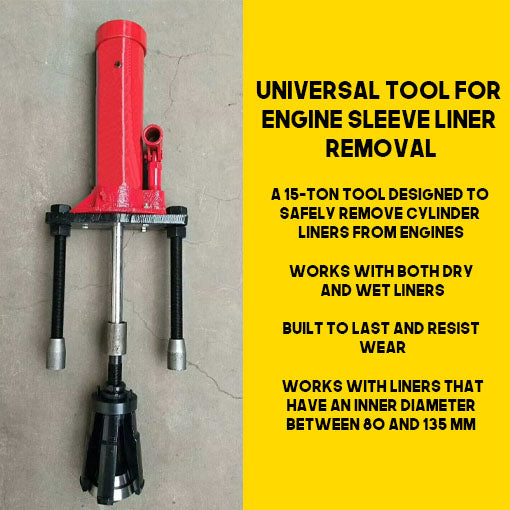

Universal Tool for Engine Sleeve Liner Removal

“Excellent tools, very sturdy. Just need to be familiar with tools and operating them. Looks and feels durable, but as for right now, it does the job great. I would give 10 stars if I could.” - Ariel Medina

Why Get Our Hydraulic Cylinder Liner Puller?

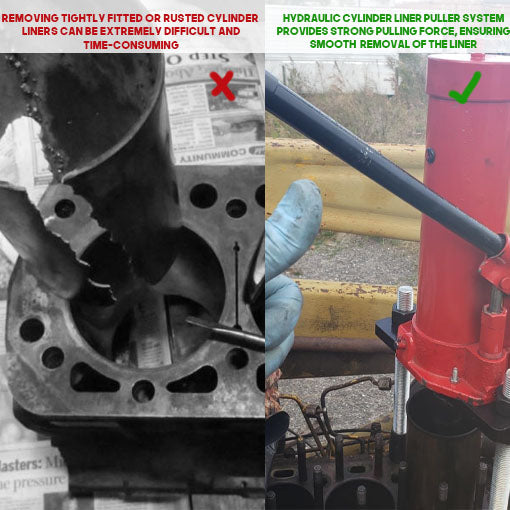

✅Efficient Cylinder Liner Removal: Removing rusted or tightly fitted cylinder liners can be tough and time-consuming, often requiring too much force. The Hydraulic Cylinder Liner Puller is a 15-ton tool designed to safely remove cylinder liners from engines. It works with both dry and wet liners, fitting inner diameters from 80 to 135 mm.

✅Durable Structure: Made of durable #45 steel, this cylinder liner puller is built to last and resist wear. With a maximum pulling force of 15 tons, it can easily remove even ultra-thin-walled liners. The tool is simple to use and requires minimal effort.

✅Wide Application: This cylinder liner puller is made for removing cylinder liners in internal combustion engines. It works with liners that have an inner diameter between 80 and 135 mm. The screw at the bottom lets you adjust the puller for your needs.

📓FREQUENTLY ASKED QUESTIONS

Q: Is this better than traditional models?

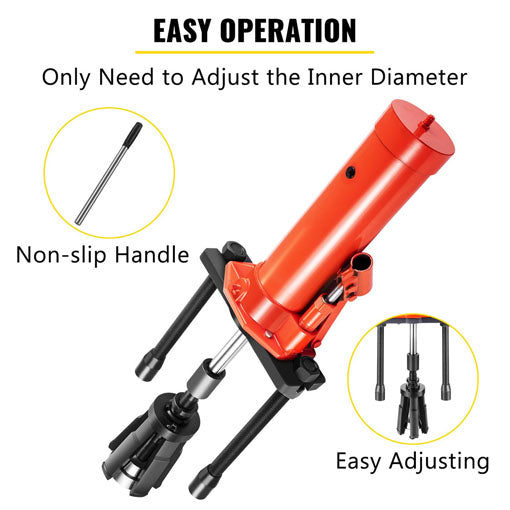

A: This cylinder liner puller is ergonomically designed with a press rod, making it more labor-saving and easier to use than traditional models.

Q: What size cylinder liners does this puller fit?

A: It fits cylinder liners with an inner diameter between 80 and 135 mm.

🌟REMINDERS

• The extension of the cylinder push rod should not exceed 50mm.

• Please note that there may be slight color differences due to lighting and a 1-3 cm measurement error from manual measurements. Make sure you are okay with this before placing your order.

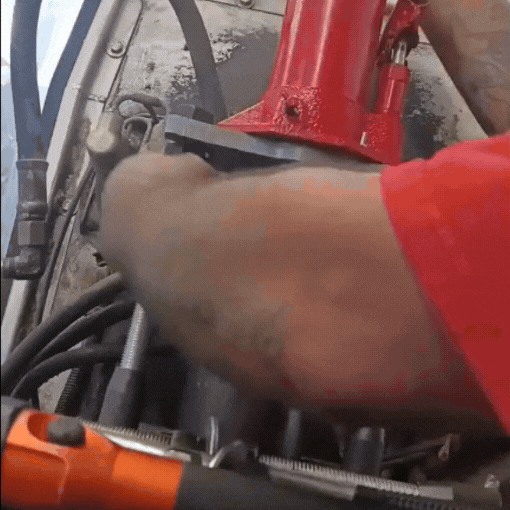

🌟HOW TO USE

• First, disassemble the parts based on the model and select the pull plate and connecting rod (choose the correct length).

• Connect the connecting rod to the cylinder lifter, steering knuckle, and pull plate.

• Adjust the steering knuckle to a right angle with the connecting rod, ensuring the straight side of the pull plate is parallel to the rod and fits into the cylinder liner.

• Attach the two support tubes to the diagonal cylinder head screws.

• Finally, slide the beam of the cylinder puller into the lifting gear’s slideway and secure both ends of the beam into the support tube grooves.

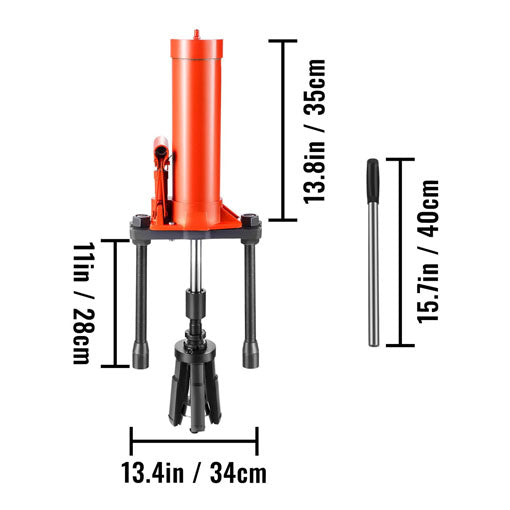

⚙️ Specifications:

• Color: Red

• Item Weight: 39.68 LBS

• Material: #45 Steel

• Max. Pulling Force: 15T

• Maximum Stroke Piston Push Rod: 1.97 IN

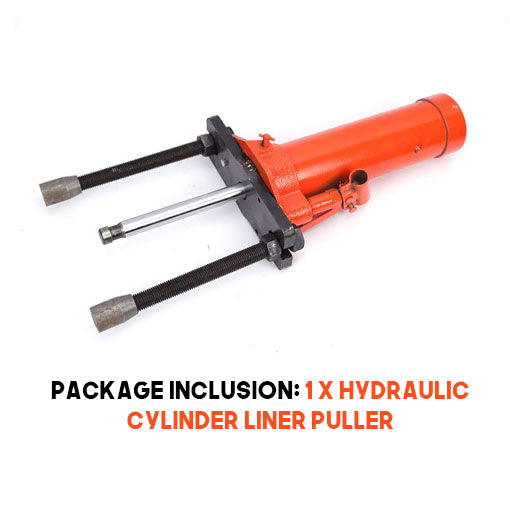

• Package Inclusion: 1 x Hydraulic Cylinder Liner Puller
