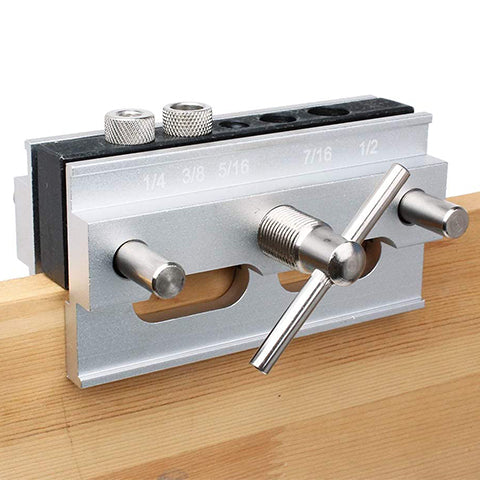

Self-Centering Doweling Jig




  • Sale
  • $39.99
  • Regular price $59.99


Excellent Tool For DIYers!

"Awesome Doweling Jig!! Used this to drill over a hundred wood peg holes. Veryย satisfiedย with howย accurateย the holes were.ย Must-haveย for DIYers!!!" -Joseph M.

Why Buy Our Self-Centering Doweling Jig?

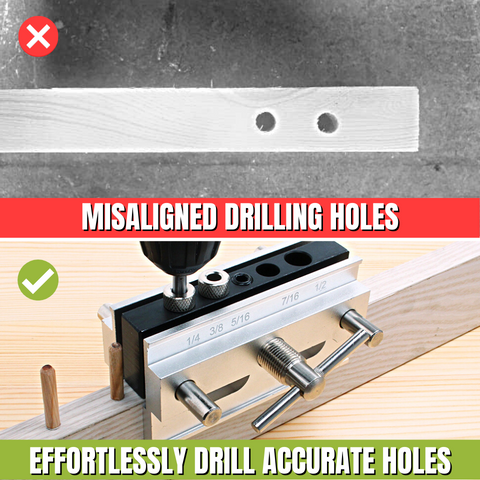

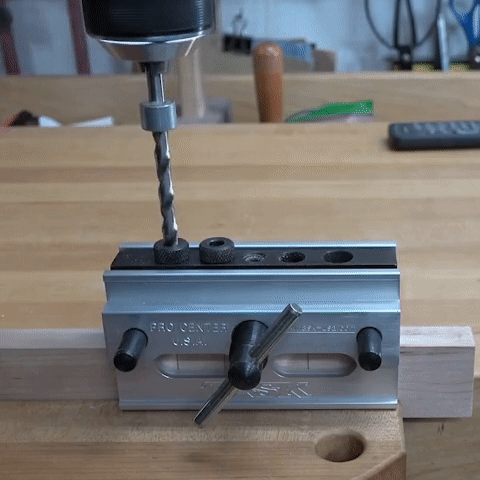

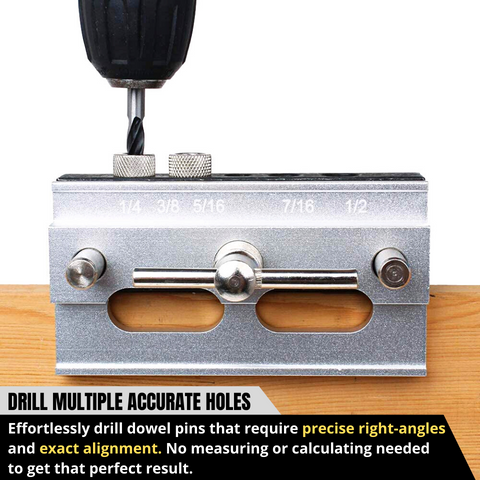

โœ…EASY TO OPERATE:ย Simply clamp the Doweling Jig with Doweling Jig Bushings on a workpiece to effortlessly drill dowel pins that require precise right-angles and exact alignment. No measuring or calculating is necessary. You can even take precision a step further and mark and align the jig to get perfect results. Suitable for creating different wood pin joints.

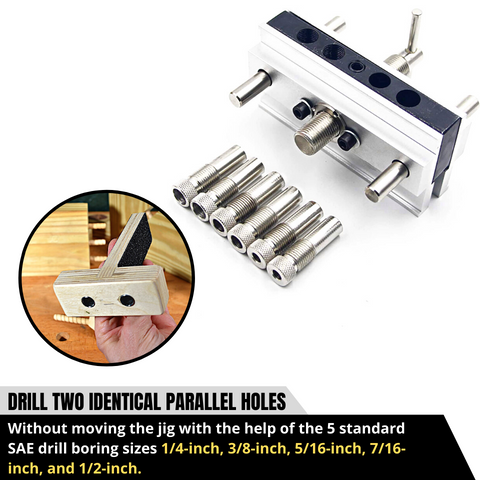

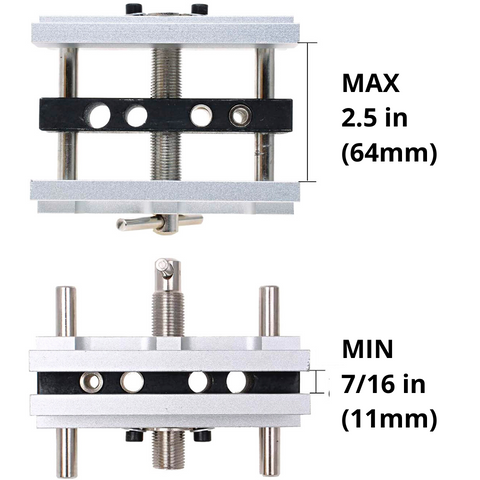

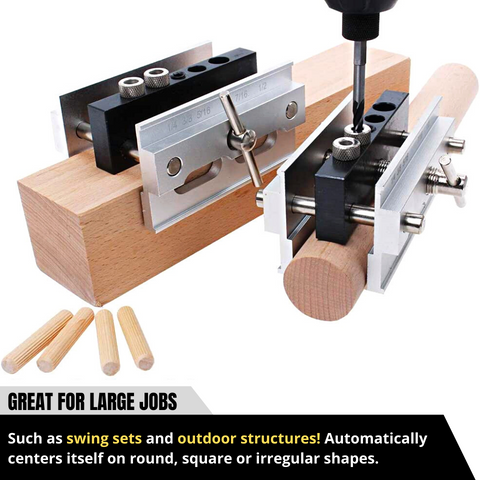

โœ…ACCURATE:ย This has a Self-centering action that allows up to about 2-1/2-inch round or square stock (maximum capacity). You can drill two identical parallel holes without moving the jig with the help of the 5 standard SAE drill boring sizes 1/4-inch, 3/8-inch, 5/16-inch, 7/16-inch, and 1/2-inch. Hole sizes are permanently laser-etched for quick and accurate use. Simple and convenient precise drilling so that the positioning is more accurate and no offset or gaps are left.

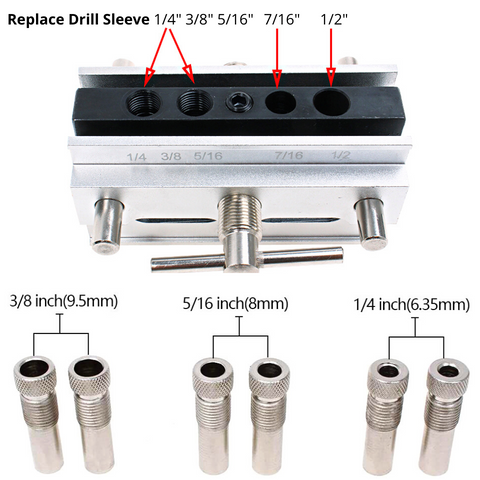

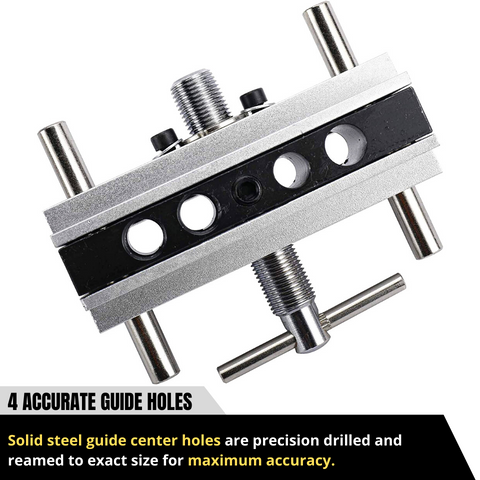

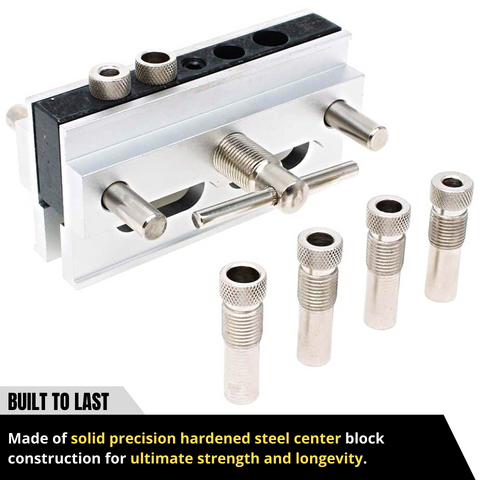

โœ…DURABLE:ย Made of solid precision hardened steel center block construction for ultimate strength and longevity. This includes 6pcs drill sleeves. The drill sleeve is made of wear-resistant steel, while the guide holes for the supplied bushings make this jig perfect for joining miter, butt, and edge joints.ย


๐Ÿ“‹Frequently Asked Questions:

Q: How to use this?ย

A:ย

  1. Loosen the two screws on the rear pressing block with an Allen key(5/32in).
  2. Adjust the big screw on the handle to keep the left and right distance of the product consistent.
  3. After adjusting the left and right distances to be equal, tighten the two screws on the rear pressing block.
  4. Rotate the handle to check whether the distance between the front pressing block and rear pressing block to the guide block is the same.

Q: What is the hole spacing on the small guide holes?

A:ย It's 0.6inches.ย
