SS2 Float Switch L Shape Overflow Shut-Off

  • Sale
  • $59.99
  • Regular price $79.99

Enjoy Worry-free HVAC Operation!

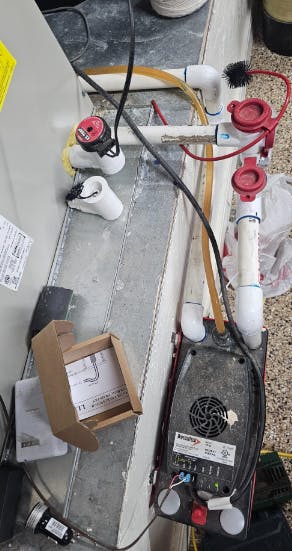

The float switch has proven to be a great line of defense when the condensate drain is clogged. Installation was easy. I simply removed the plug in the auxiliary drain pan and screwed in the bushing included with the switch. After connecting the wires to the thermostat switch wire, the cut off switch was installed. If your coil pan does not have a secondary/auxiliary drain port, then additional PVC fittings will be required. The switch can be safely tested at any time by removing the switch from its PVC housing and lifting the plunger into the cutoff position. This will disconnect the power from the thermostat to the air handler. The switch worked perfectly. - S. Matt

Why Buy Our SS2 Float Switch L Shape Overflow Shut-Off?

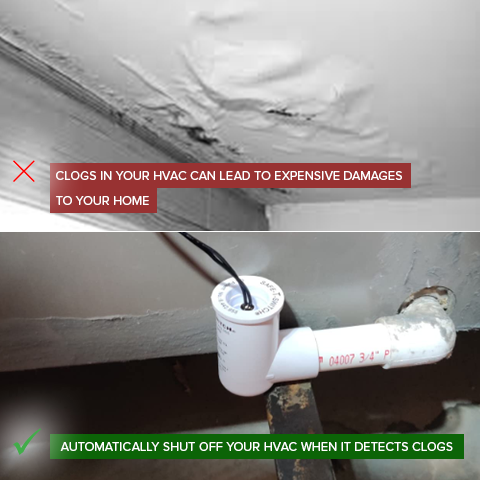

Smart Detection: Prevent costly water damage caused by clogged AC condensate drains with our SS2 Float Switch L Shape Safe-T-Switch! It gives unparalleled protection for your HVAC system and property by quickly spotting water buildup in the drain and automatically turning off the system to stop overflow and water damage on floors, walls, and ceilings.

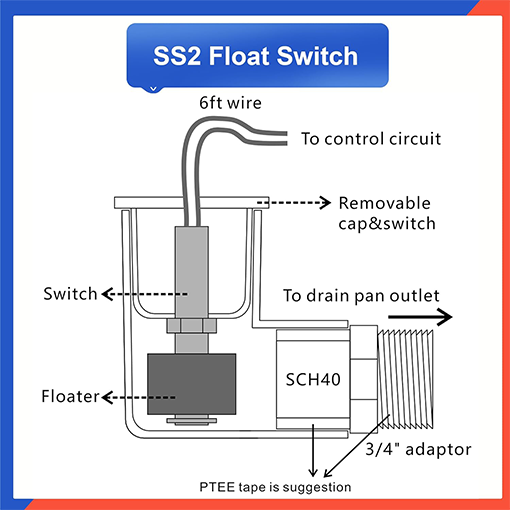

✅ Reliable: The SS2 Float Switch comes with a 3/4" adapter, bushing, cap, and switch. You can install it on the auxiliary drain outlet of the primary pan using the 3/4" adapter. The switch can be connected to either the VCC or thermostat wires for easy setup.

📋 Frequently Asked Questions:

Q: How do I install the SS2 Float Switch?

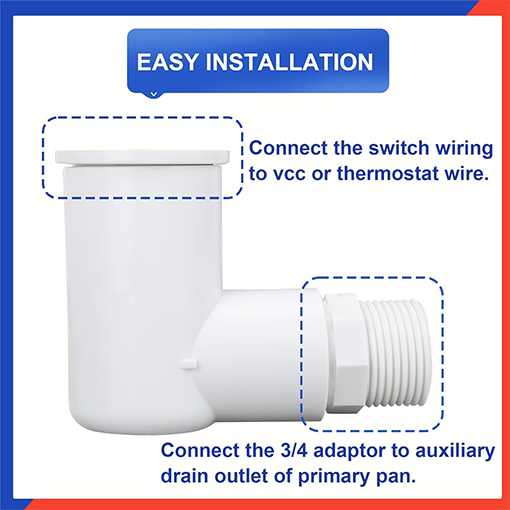

A: Simply attach the included 3/4" adapter to the auxiliary drain outlet of your primary pan and connect the switch to either the VCC or thermostat wires.

Q: Is the SS2 Float Switch compatible with all HVAC systems?
Yes, the SS2 Float Switch is designed to work with most HVAC systems, providing universal compatibility for flexible applications.

⚙️ Specifications:

  • Operating Voltage: 120 Volts (AC)

  • Contact Type: Normally Closed

  • Connector Type: Auxiliary

  • Mounting Type: Panel Mount

  • Contact Material: Aluminum

  • Connectivity Protocol: X-10

  • Unit Count: 1.0 Count

📦 Package Inclusions:

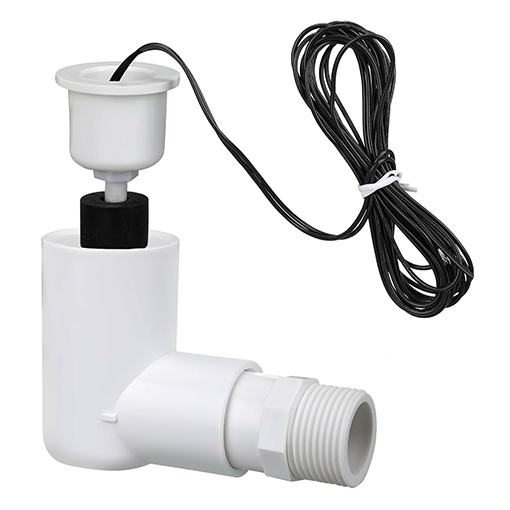

  • 1 x SS2 Float Switch L Shape Safe-T-Switch

  • 1 x 3/4" Adapter

  • 1 x Cap&Switch
